一体成型电感-PL系列
■ 产品图
■ 概要
艺感一体成型电感（PL）系列产品是一款以软磁材料、采用模压一体成型工艺的功率电感器 。该系列尺寸覆盖 4mm-12mm ，尺寸全面且感量丰富。与传统绕线功率电感器相比 ，具有大电流 、低 DCR、更好的直流偏置特性。在生产中 ，运用高精度模具压铸控制、绕组引脚一体化成形等工艺等来保证产品质量一致性和生产稳定性。同时 ，使用闭合磁路设计能有效减少漏磁通 ，为应用端提供良好的 EMI 性能。
■背景
一体成型电感的开发 ，源于电子设备在高性能、小型化、高可靠性三重趋势下的迫切需求。随着CPU主频持续攀升 ，对供电系统的稳定性、瞬态响应能力及滤波性能提出了前所未有的要求以及电源技术与整机小型化的双重推动 ，一体成型电感较传统绕线电感更具优势
艺感推出的PL系列产品 ，通过将绕组完全埋入金属磁性粉末中压铸成型 ，实现了高饱和电流 、低直流电阻（DCR）、优异磁屏蔽和超低电磁干扰（EMI） ，从而为CPU提供更纯净、更稳定的电源环境。
■产品特性
—紧凑设计
—高电流 ，低直流电阻 ，高效率
—非常低的声学噪声和非常低的漏磁噪声
—高可靠性
■产品应用
—应用于电源 ，电脑 ，显卡 ，基站 ，安防 ，服务器等领域
■产品型号
选取 PL060630 系列作为例子
|
PL |
060630 |
X |
1R0 |
M |
E |
01 |
S |
T |
00 |
|
① |
② |
③ |
④ |
⑤ |
⑥ |
⑦ |
⑧ |
⑨ |
⑩ |
|
①产品类型 Product Type |
PL：冷压一体成型功率电感 |
|
② 外观尺寸 Dimensions： L*W*T |
060630 ：7.3*6.8*3.0mm |
|
③特殊标识 Product Identification |
X ：常规品 |
|
④ 电感量 Inductance |
1R0： 1.0 μH |
|
⑤ 感量公差 Tolerance |
M： ±20% |
|
⑥ 材质 Materials |
E：合金 |
|
⑦ 流水码 Sequential code |
01 ：流水码 |
|
⑧ 产品级别 Product level |
S ：消费级别 |
|
⑨ 线材 Wire Rod |
T： 圆线点焊 |
|
⑩ 识别码 Identification Code |
00 ：客户识别码 |

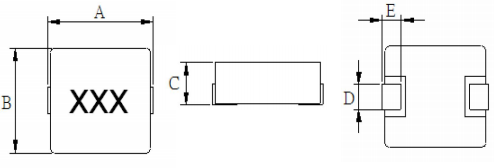

■产品尺寸
Unit: mm
| SERIES | A | B | C | D | E |
| PL040412 | 4.45±0.35 | 4.05±0.3 | 1.2 Max | 2.0 ±0.3 | 0.8 ±0.3 |
| PL040415 | 4.45±0.35 | 4.05±0.3 | 1.5 Max | 2.0 ±0.3 | 0.8 ±0.3 |
| PL040418 | 4.45±0.35 | 4.05±0.3 | 1.8 Max | 2.0 ±0.3 | 0.8 ±0.3 |
| PL040420 | 4.45±0.35 | 4.05±0.3 | 2.0 Max | 2.0 ±0.3 | 0.8 ±0.3 |
| PL050512 | 5.5 ±0.4 | 5.2 ±0.2 | 1.2 Max | 2.1 ±0.3 | 1.2 ±0.3 |
| PL050515 | 5.5 ±0.4 | 5.2 ±0.2 | 1.5 Max | 2.1 ±0.3 | 1.2 ±0.3 |
| PL050518 | 5.5 ±0.4 | 5.2 ±0.2 | 1.8 Max | 2.1 ±0.3 | 1.2 ±0.3 |
| PL050520 | 5.5 ±0.4 | 5.2 ±0.2 | 2.0 Max | 2.1 ±0.3 | 1.2 ±0.3 |
| PL050524 | 5.5 ±0.4 | 5.2 ±0.2 | 2.4 Max | 2.1 ±0.3 | 1.2 ±0.3 |
| PL050530 | 5.5 ±0.4 | 5.2 ±0.2 | 3.0 Max | 2.1 ±0.3 | 1.2 ±0.3 |
| PL060612 | 6.9 ±0.5 | 6.5 ±0.5 | 1.2 Max | 2.9 ±0.5 | 1.3 ±0.5 |
| PL060615 | 6.9 ±0.5 | 6.5 ±0.5 | 1.5 Max | 2.9 ±0.5 | 1.3 ±0.5 |
| PL060618 | 6.9 ±0.5 | 6.5 ±0.5 | 1.8 Max | 2.9 ±0.5 | 1.3 ±0.5 |
| PL060620 | 6.9 ±0.5 | 6.5 ±0.5 | 2.0 Max | 2.9 ±0.5 | 1.3 ±0.5 |
| PL060624 | 6.9 ±0.5 | 6.5 ±0.5 | 2.4 Max | 2.9 ±0.5 | 1.3 ±0.5 |
| PL060625 | 6.9 ±0.5 | 6.5 ±0.5 | 2.5 Max | 2.9 ±0.5 | 1.3 ±0.5 |
| PL060630 | 6.9 ±0.5 | 6.5 ±0.5 | 3.0 Max | 2.9 ±0.5 | 1.3 ±0.5 |
| PL060640 | 6.9 ±0.5 | 6.5 ±0.5 | 4.0 Max | 2.9 ±0.5 | 1.3 ±0.5 |
| PL060645 | 6.9 ±0.5 | 6.5 ±0.5 | 4.5 Max | 2.9 ±0.5 | 1.3 ±0.5 |
| PL060650 | 6.9 ±0.5 | 6.5 ±0.5 | 5.0 Max | 2.9 ±0.5 | 1.3 ±0.5 |
| PL070740 | 8.2 ±0.5 | 7.0 ±0.5 | 4.0 Max | 3.0 ±0.5 | 1.3 ±0.5 |
| PL080825 | 8.5±0.5 | 8. 1±0.3 | 2.5Max | 2.8±0.5 | 1.7±0.5 |
| PL080830 | 8.5±0.5 | 8. 1±0.3 | 3.0Max | 2.8±0.5 | 1.7±0.5 |
| PL080840 | 8.5 ±0.5 | 8.1 ±0.3 | 4.0 Max | 2.8 ±0.5 | 1.7 ±0.5 |
| PL080850 | 8.5 ±0.5 | 8.1 ±0.3 | 5.0 Max | 2.8 ±0.5 | 1.7 ±0.5 |
| PL090730 | 10.5 ±0.5 | 6.9 ±0.3 | 3.0 Max | 2.8 ±0.5 | 2.2 ±0.5 |
| PL090740 | 10.5 ±0.5 | 6.9 ±0.3 | 4.0 Max | 2.8 ±0.5 | 2.2 ±0.5 |
| PL090750 | 10.5 ±0.5 | 6.9 ±0.3 | 5.0 Max | 2.8 ±0.5 | 2.2 ±0.5 |
| PL090755 | 10.5 ±0.5 | 6.9 ±0.3 | 5.5 Max | 2.8 ±0.5 | 2.2 ±0.5 |
| PL101015 | 11.0 ±0.5 | 10.0 ±0.3 | 1.5 Max | 3.0 ±0.5 | 2.0 ±0.5 |
| PL101024 | 11.0 ±0.5 | 10.0 ±0.3 | 2.4 Max | 3.0 ±0.5 | 2.0 ±0.5 |
| PL101025 | 11.0 ±0.5 | 10.0 ±0.3 | 2.5 Max | 3.0 ±0.5 | 2.0 ±0.5 |
| PL101028 | 11.0 ±0.5 | 10.0 ±0.3 | 2.8 Max | 3.0 ±0.5 | 2.0 ±0.5 |
| PL101030 | 11.0 ±0.5 | 10.0 ±0.3 | 3.0 Max | 3.0 ±0.5 | 2.0 ±0.5 |
| PL101040 | 11.0 ±0.5 | 10.0 ±0.3 | 4.0 Max | 3.0 ±0.5 | 2.0 ±0.5 |
| PL101050 | 11.0 ±0.5 | 10.0 ±0.3 | 5.0 Max | 3.0 ±0.5 | 2.0 ±0.5 |
| PL121235 | 13.5 ±0.5 | 12.5 ±0.4 | 3.5 Max | 3.5 ±0.5 | 2.3 ±0.5 |
| PL121240 | 13.5 ±0.5 | 12.5 ±0.4 | 4.0 Max | 3.5 ±0.5 | 2.3 ±0.5 |
| PL121250 | 13.5 ±0.5 | 12.5 ±0.4 | 5.0 Max | 3.5 ±0.5 | 2.3 ±0.5 |
| PL121260 | 13.5 ±0.5 | 12.5 ±0.4 | 6.0 Max | 3.5 ±0.5 | 2.3 ±0.5 |
| PL121264 | 13.5 ±0.5 | 12.5 ±0.4 | 6.4 Max | 3.5 ±0.5 | 2.3 ±0.5 |
| PL120830 | 12.8 ±0.4 | 7.9 ±0.3 | 3.0 Max | 3.0 ±0.5 | 2.5 ±0.5 |
| PL120840 | 12.8 ±0.4 | 7.9 ±0.3 | 4.0 Max | 3.0 ±0.5 | 2.5 ±0.5 |
| PL120850 | 12.8 ±0.4 | 7.9 ±0.3 | 5.0 Max | 3.0 ±0.5 | 2.5 ±0.5 |
■产品电性
选取 PL040420, PL060630 和 PL101040 系列为例PL040420 Series
| Part Number | L (μH) |
DCR (mΩ) | Isat(A) | Irms(A) | |
| TYP | MAX | ||||
| PL040420XR10ME01-ST00 | 0.1 | 2.8 | 3.3 | 35 | 15 |
| PL040420XR20ME01-ST00 | 0.2 | 5 | 7.5 | 15 | 10 |
| PL040420XR22ME01-ST00 | 0.22 | 5 | 7.5 | 15 | 10 |
| PL040420XR22ME02-ST00 | 0.22 | 6 | 6.6 | 12.5 | 9 |
| PL040420XR24ME01-ST00 | 0.24 | 6.5 | 8 | 15 | 9 |
| PL040420XR33ME01-ST00 | 0.33 | 7.9 | 8.7 | 15 | 10 |
| PL040420XR36ME01-ST00 | 0.36 | 8.2 | 9.2 | 9.5 | 11.5 |
| PL040420XR47ME01-ST00 | 0.47 | 12 | 15 | 12 | 7 |
| PL040420XR56ME01-ST00 | 0.56 | 14 | 16 | 10 | 6.5 |
| PL040420XR68ME01-ST00 | 0.68 | 16 | 18 | 10 | 7 |
| PL040420X1R0ME01-ST00 | 1 | 23 | 27 | 8.5 | 5 |
| PL040420X1R0ME03-ST00 | 1 | 19.5 | 21 | 8 | 6.5 |
| PL040420X1R2ME01-ST00 | 1.2 | 24 | 27 | 7 | 5 |
| PL040420X1R5ME01-ST00 | 1.5 | 20 | 23 | 6.5 | 5 |
| PL040420X2R2ME01-ST00 | 2.2 | 38 | 58 | 5 | 4 |
| PL040420X3R3ME01-ST00 | 3.3 | 64 | 76 | 4 | 3.5 |
| PL040420X4R7ME01-ST00 | 4.7 | 97 | 105 | 3.5 | 2.8 |
| PL040420X5R6ME01-ST00 | 5.6 | 105 | 115 | 3.5 | 1.8 |
| PL040420X6R8ME01ST00 | 6.8 | 135 | 160 | 2.5 | 2 |
| PL040420X8R2ME01-ST00 | 8.2 | 160 | 207 | 2.4 | 1.8 |
| PL040420X220ME01-ST00 | 22 | 460 | 550 | 1 | 0.8 |
| PL040420XR33MT01-ST00 | 0.33 | 7.9±10% | 18 | 10 | |
| PL040420XR47MT01-ST00 | 0.47 | 12 | 14 | 9.5 | 7 |
| PL040420XR47MT02-ST00 | 0.47 | 9.6±7% | 13 | 9 | |
| PL040420XR47MT04-ST00 | 0.47 | 10.5 | 12 | 11 | 7.5 |
| PL040420XR68MT01-ST00 | 0.68 | 12 | 14 | 8.5 | 7 |
| PL040420X1R0MT01-ST00 | 1 | 23 | 27 | 8.5 | 5.1 |
| PL040420X1R0MT03-ST00 | 1 | 16 | 17 | 8.5 | 6 |
| PL040420X1R2MT01-ST00 | 1.2 | 21 | 25 | 4.9 | 6.1 |
| PL040420X1R5MT02-ST00 | 1.5 | 26 | 33 | 8.5 | 5.4 |
| PL040420X2R2MT01-ST00 | 2.2 | 38 | 48 | 6 | 4.5 |
| PL040420X4R7MT01-ST00 | 4.7 | 75 | 83 | 3.6 | 2.7 |
| PL040420X4R7MT02-ST00 | 4.7 | 70 | 75 | 4 | 2.8 |
| PL040420X6R8MT01-ST00 | 6.8 | 159 | 178 | 3 | 2.2 |
PL060630 Series
| Part Number | L (μH) |
DCR (mΩ) | Isat(A) | Irms(A) | |
| TYP | MAX | ||||
| PL060630XR10ME01-ST00 | 0.1 | 1.5 | 1.7 | 60 | 30 |
| PL060630XR10ME02-SV00 | 0.1 | 0.9 | 1.2 | 60 | 32.5 |
| PL060630XR15ME01-ST00 | 0.15 | 2 | 2.5 | 52 | 30 |
| PL060630XR15ME02-SV00 | 0.15 | 0.9±7% | 30 | 25 | |
| PL060630XR22ME01-SV00 | 0.22 | 2 | 2.2 | 40 | 24 |
| PL060630XR22ME05-SV00 | 0.22 | 1.8±7% | 45 | 25 | |
| PL060630XR24ME01-SV00 | 0.24 | 2.0±10% | 36 | 22 | |
| PL060630XR33ME01-ST00 | 0.33 | 3 | 3.5 | 30 | 20 |
| PL060630XR36ME01-ST00 | 0.36 | 2.1 | 2.4 | 32 | 23 |
| PL060630XR47ME01-ST00 | 0.47 | 4 | 4.2 | 25 | 16.5 |
| PL060630XR47ME03-ST00 | 0.47 | 3.4 | 4.1 | 20 | 18 |
| PL060630XR56ME01-ST00 | 0.56 | 4.7 | 5 | 25 | 15.5 |
| PL060630XR68ME01-ST00 | 0.68 | 4.7 | 5.5 | 24.5 | 15.5 |
| PL060630XR82ME01-ST00 | 0.82 | 5.5 | 6 | 16 | 14 |
| PL060630XR82ME02-ST00 | 0.82 | 6.7 | 8 | 24 | 13 |
| PL060630X1R0ME01-ST00 | 1 | 6.7 | 7.4 | 16 | 12.5 |
| PL060630X1R0ME02-ST00 | 1 | 9 | 10 | 19 | 11 |
| PL060630X1R5ME01-ST00 | 1.5 | 10 | 15 | 15 | 9 |
| PL060630X1R5ME03-ST00 | 1.5 | 8.7 | 10 | 14 | 12 |
| PL060630X2R2ME01-ST00 | 2.2 | 17 | 20 | 12 | 8 |
| PL060630X2R2ME02-ST00 | 2.2 | 12.5 | 15 | 8 | 7.6 |
| PL060630X2R2ME03-ST00 | 2.2 | 10.5 | 12.8 | 13 | 11 |
| PL060630X2R7ME01-ST00 | 2.7 | 17 | 20 | 10 | 8 |
| PL060630X3R3ME01-ST00 | 3.3 | 28 | 30 | 13.5 | 6 |
| PL060630X3R3ME03-ST00 | 3.3 | 18 | 22 | 10 | 8 |
| PL060630X4R7ME01-ST00 | 4.7 | 35 | 40 | 8 | 5.5 |
| PL060630X5R6ME01-ST00 | 5.6 | 40 | 50 | 9 | 5 |
| PL060630X6R8ME01-ST00 | 6.8 | 52 | 60 | 8 | 4.5 |
| PL060630X6R8ME02-ST00 | 6.8 | 42 | 48 | 4.8 | 4 |
| PL060630X8R2ME01-ST00 | 8.2 | 64 | 68 | 7.5 | 4 |
| PL060630X8R2ME02-ST00 | 8.2 | 55 | 60 | 6 | 4.5 |
| PL060630X100ME01-ST00 | 10 | 64 | 68 | 5 | 4 |
| PL060630X100ME02-ST00 | 10 | 96 | 105 | 8 | 3 |
| PL060630X150ME01-ST00 | 15 | 133 | 150 | 3.8 | 2.7 |
| PL060630X150ME02-ST00 | 15 | 100 | 115 | 4.4 | 2.8 |
| PL060630X220ME01-ST00 | 22 | 160 | 190 | 3.3 | 2.2 |
| PL060630X220ME02-ST00 | 22 | 140 | 165 | 3.2 | 2.4 |
| PL060630X330ME01-ST00 | 33 | 260 | 284 | 2.5 | 2 |
| PL060630XR10MT01-SV00 | 0.1 | 0.67 | 0.76 | 62 | 40 |
| PL060630XR10MT02-ST00 | 0.1 | 1.5 | 1.7 | 60 | 32.5 |
| PL060630XR12MT03-SV00 | 0.12 | 0.9±5% | 70 | 40 | |
| PL060630XR12MT04-SV00 | 0.12 | 0.65±7% | 70 | 41.5 | |
| PL060630XR15MT01-SV00 | 0.15 | 0.9±5% | 41 | 35 | |
| PL060630XR15MT02-SV00 | 0.15 | 0.67±5% | 53.5 | 45 | |
| PL060630XR15MT03-SV00 | 0.15 | 0.72±5% | 60 | 40 | |
| PL060630XR20MT01-SV00 | 0.2 | 1. 17±10% | 35 | 15 | |
| PL060630XR20MT02-SV00 | 0.2 | 1.95±5% | 53 | 26 | |
| PL060630XR22MT01-ST00 | 0.22 | 2.2 | 2.8 | 55 | 24 |
| PL060630XR22MT02-SV00 | 0.22 | 1. 17±5% | 35 | 30 | |
| PL060630XR24MT01-SV00 | 0.24 | 1. 14±5% | 32 | 32 | |
| PL060630XR24MT02-SV00 | 0.24 | 1.19±5% | 32 | 31 | |
| PL060630XR33MT01-ST00 | 0.33 | 2.2 | 2.5 | 30 | 20 |
| PL060630XR33MT03-SV00 | 0.33 | 1.75+/-5% | 30 | 28 | |
| PL060630XR36MT01-SV00 | 0.36 | 2 | 2.2 | 30 | 26 |
| PL060630XR47MT01-ST00 | 0.47 | 3.5 | 4.1 | 20 | 17 |
| PL060630XR47MT02-ST00 | 0.47 | 3.2±10% | 35 | 20 | |
| PL060630XR56MT01-ST00 | 0.56 | 4.7 | 5 | 25.5 | 16.5 |
| PL060630XR68MT01-ST00 | 0.68 | 4.7 | 5.5 | 25 | 15.5 |
| PL060630XR82MT01-ST00 | 0.82 | 6.7 | 8 | 26 | 13 |
| PL060630X1R0MT01-ST00 | 1 | 7.8 | 10 | 20 | 10 |
| PL060630X1R0MT05-ST00 | 1 | 5.5 | 6.5 | 13.5 | 15 |
| PL060630X1R2MT01-ST00 | 1.2 | 7.8 | 10 | 22 | 11 |
| PL060630X1R5MT01-ST00 | 1.5 | 10 | 15 | 18 | 9 |
| PL060630X1R5MT02-ST00 | 1.5 | 7.7 | 9.5 | 16 | 13 |
| PL060630X2R2MT01-ST00 | 2.2 | 13.5 | 18 | 14 | 7.7 |
| PL060630X2R2MT05-ST00 | 2.2 | 10.5 | 12.8 | 11.5 | 10 |
| PL060630X3R3MT01-ST00 | 3.3 | 18 | 22 | 10 | 8 |
| PL060630X3R3MT02-ST00 | 3.3 | 28 | 30 | 13.5 | 6 |
| PL060630X4R7MT01-ST00 | 4.7 | 37 | 40 | 10 | 5.5 |
| PL060630X4R7MT02-ST00 | 4.7 | 26 | 30 | 15 | 7 |
| PL060630X6R8MT01-ST00 | 6.8 | 42 | 48 | 10 | 5 |
| PL060630X100MT01-ST00 | 10 | 62 | 68 | 5 | 4 |
| PL060630X220MT01-ST00 | 22 | 145 | 165 | 4 | 3 |
PL101040 Series
| Part Number | L (μH) |
DCR(mΩ) | Isat(A) | Irms(A) | |
| TYP | MAX | ||||
| PL101040XR15ME01-SV00 | 0.15 | 0.4 | 0.5 | 68 | 48 |
| PL101040XR15ME02-SV00 | 0.15 | 0.5 | 0.6 | 75 | 45 |
| PL101040XR19ME01-SV00 | 0.19 | 0.76 | 0.8 | 90 | 40 |
| PL101040XR20ME01-SV00 | 0.2 | 0.45 | 0.53 | 70 | 40 |
| PL101040XR22ME01-SV00 | 0.22 | 0.56 | 0.65 | 72 | 50 |
| PL101040XR30ME01-ST00 | 0.3 | 0.95 | 1.1 | 50 | 34 |
| PL101040XR33ME01-ST00 | 0.33 | 1.1 | 1.2 | 60 | 30 |
| PL101040XR36ME01-ST00 | 0.36 | 1.1 | 1.2 | 60 | 31.5 |
| PL101040XR36ME03-ST00 | 0.36 | 0.76±7% | 40 | 36 | |
| PL101040XR47ME01-SV00 | 0.47 | 1.35 | 1.68 | 40 | 23 |
| PL101040XR56ME02-SV00 | 0.56 | 1.7 | 1.8 | 46 | 25.5 |
| PL101040XR68ME01-SV00 | 0.68 | 1.9 | 2.1 | 43 | 22 |
| PL101040XR68ME02-SV00 | 0.68 | 1.4 | 1.55 | 30 | 27 |
| PL101040XR82ME01-SV00 | 0.82 | 2.3 | 2.7 | 30 | 24 |
| PL101040XR88ME01-SV00 | 0.88 | 2.7 | 3 | 35 | 20 |
| PL101040X1R0ME01-SV00 | 1 | 3.1 | 3.3 | 32 | 18 |
| PL101040X1R0ME02-SV00 | 1 | 2.3 | 2.7 | 30 | 21 |
| PL101040X1R5ME01-SV00 | 1.5 | 4.3 | 5 | 32 | 15 |
| PL101040X2R2ME01-ST00 | 2.2 | 7.8 | 9 | 23 | 13 |
| PL101040X2R2ME02-ST00 | 2.2 | 5.4 | 6.2 | 21 | 16 |
| PL101040X3R3ME01-ST00 | 3.3 | 10.8 | 11.8 | 14 | 10 |
| PL101040X4R7ME04-ST00 | 4.7 | 10.8 | 12 | 12 | 10 |
| PL101040X5R6ME01-ST00 | 5.6 | 17.6 | 19.3 | 16 | 8.5 |
| PL101040X6R8ME01-ST00 | 6.8 | 21 | 23.3 | 12 | 8 |
| PL101040X8R2ME01-ST00 | 8.2 | 25 | 27 | 9 | 6 |
| PL101040X100ME01-ST00 | 10 | 27 | 30 | 7.5 | 6.1 |
| PL101040X150ME01-ST00 | 15 | 40 | 45 | 7 | 6.25 |
| PL101040X220ME02-ST00 | 22 | 60 | 70 | 6 | 4 |
| PL101040X330ME02-ST00 | 33 | 85 | 112 | 5 | 3.5 |
| PL101040XR15MT01-SV00 | 0.15 | 0.4 | 0.5 | 68 | 48 |
| PL101040XR15MT02-SV00 | 0.15 | 0.44±5% | 75 | 40 | |
| PL101040XR22MT01-SV00 | 0.22 | 0.44±18% | 70 | 40 | |
| PL101040XR22MT02-SV00 | 0.22 | 0.85±5% | 90 | 40 | |
| PL101040XR33MT01-SV00 | 0.33 | 0.5 | 0.6 | 50 | 35 |
| PL101040XR36MT01-SV00 | 0.36 | 1.3 | 1.4 | 60 | 31.5 |
| PL101040XR47MT01-SV00 | 0.47 | 1.35 | 1.68 | 40 | 30 |
| PL101040XR47MT02-SV00 | 0.47 | 1.3 | 1.5 | 40 | 28 |
| PL101040XR68MT01-SV00 | 0.68 | 1.9 | 2.1 | 39 | 19 |
| PL101040XR68MT02-SV00 | 0.68 | 1.3 | 1.6 | 33 | 20 |
| PL101040X1R0MT01-ST00 | 1 | 2.7 | 3.3 | 33 | 17 |
| PL101040X1R5MT01-ST00 | 1.5 | 3.8 | 4.2 | 30 | 18 |
| PL101040X1R5MT03-ST00 | 1.5 | 2.9 | 3.3 | 27 | 18 |
| PL101040X2R2MT01-ST00 | 2.2 | 5.7 | 7 | 25 | 10 |
| PL101040X3R3MT01-ST00 | 3.3 | 10.8 | 11.8 | 17 | 10 |
| PL101040X4R7MT01-ST00 | 4.7 | 12.5 | 16.5 | 16.5 | 9 |
| PL101040X6R8MT01-ST00 | 6.8 | 21 | 23.3 | 13 | 7.5 |
| PL101040X100MT01-ST00 | 10 | 26 | 30 | 7.5 | 6.5 |
| PL101040X150MT01-ST00 | 15 | 41 | 42 | 10 | 6 |
| PL101040X330MT01-ST00 | 33 | 85 | 92 | 5 | 4.4 |
